Leaper 1A Taiwan
Description
Leaper 1A Taiwan
Introduction

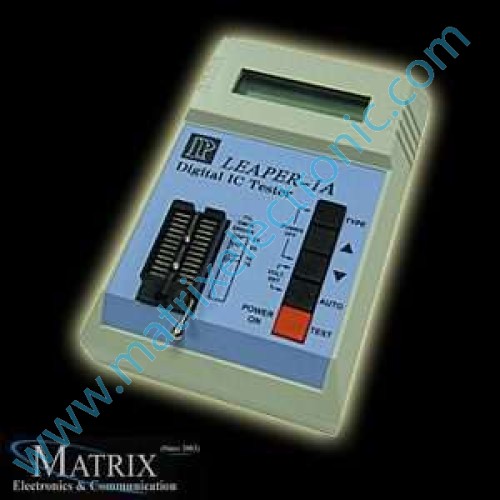

LEAPER-1A is a protable IC Tester that is especially designed for digital ICs.
It has 24-PIN ZIF socket to suit different digital ICs. No PC is required to operate
- LEAPER-1A, it works complete in stand-alone mode through power adaptor or batteries.
Features
- Easy-operating, particularly designed for the digital ICs.
- Support low voltage device test.
- Voltage range: 2.5V/3.0V/3.3V/5V
- Device type:
54/74 xxxx TTL series
40/45/14xxx CMOS series
20xx/28xx Driver IC series
LEAPER-1A also supports other digital ICs which have same logic function as supported digital ICs. - Provide idle mode for saving power.
- High-test speed: generally test an IC in 0.6 second.
- Small, portable, light and power-saving,usable with batteries.
- Display:16 characters in 1 line LCD.
Device Type
- 74 Series
- 40 Series
- 45 Series
- Driver
Specification
- Display: 16 x 1 character LCD
- Test Pins: 14~24 pin
- Power: DC 9V/500mA or 9V Alkaline battery x 2
- Dimension: 16cm x 11cm x 4.5cm
- Test Voltage: 2.5V / 3.0V / 3.3V / 5.0 VDC
- Alarm: Various tones for the test result
- Weight: 312g
- Operating Altitude: up to 5000m
- Operating Humidity: 90％ (non-condensing)
- Temperature: +5℃~+45℃
